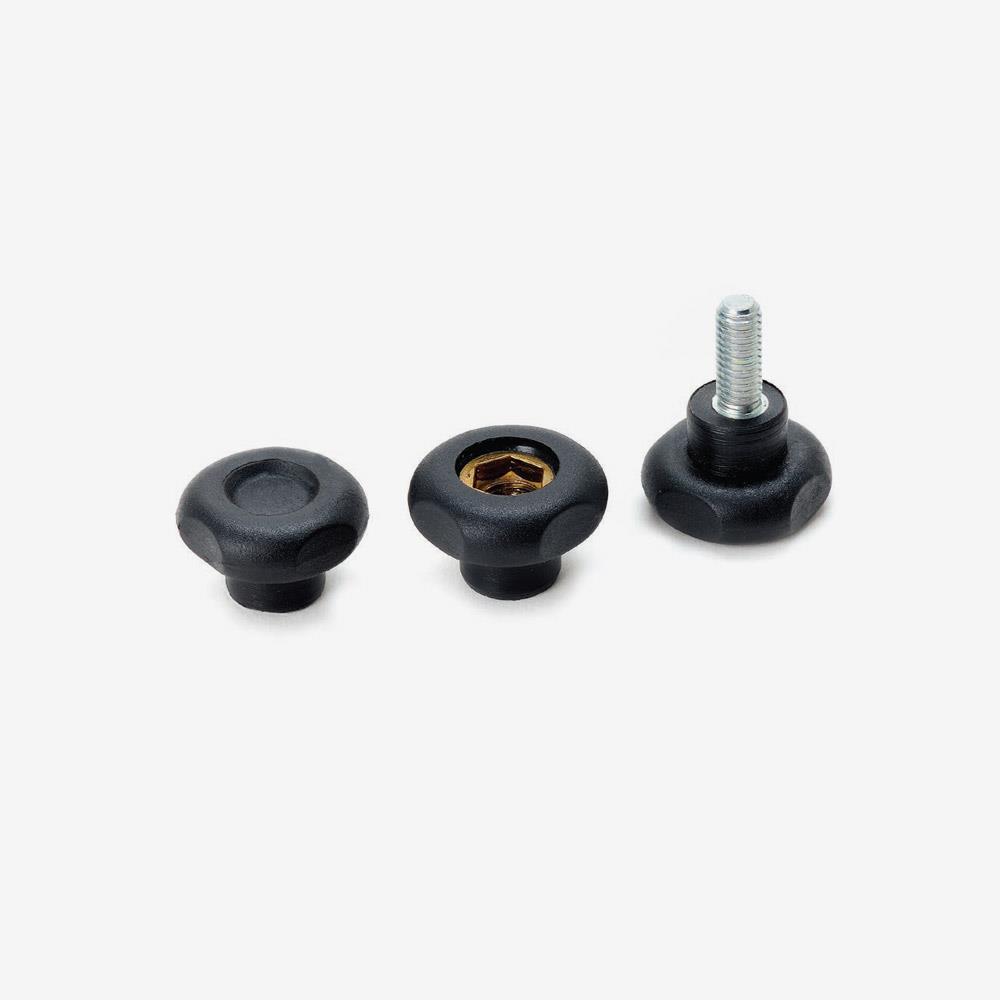

Handwheel, 4 points in technopolymer

Details


  • Technopolymer, fiberglass-reinforced, black colour, solvents-oils-greaseproof.
  • ITEM A: Brass insert, threaded blind hole.
  • ITEM B: Brass insert, threaded thru-hole.
  • ITEM C: Zinc-plated steel stud.
  • BRASS and STAINLESS STEEL insert available on request.
Data sheet
Request 2D and 3D drawings



Back

Variants available

Below the list of variants available for the product Handwheel, 4 points in technopolymer.
Add a variant to your personal list to request a personalized quote.

CodeTypeQuantity
12023400D. 25 M04x15 Add to list
12023450D. 25 M04x20 Add to list
12023500D. 25 M04x30 Add to list
12023550D. 25 M05x15 Add to list
12023600D. 25 M05x20 Add to list
12023650D. 25 M05x30 Add to list
12024000D. 25 M06x15 Add to list
12024050D. 25 M06x20 Add to list
12024100D. 25 M06x30 Add to list
12024500D. 25 M08x15 Add to list
12024550D. 25 M08x30 Add to list
12011050D. 25 M04 THRU Add to list
12001050D. 25 M04 Add to list
12001100D. 25 M05 Add to list
12011100D. 25 M05 THRU Add to list
12011150D. 25 M06 THRU Add to list
12001150D. 25 M06 Add to list
12001200D. 25 M08 Add to list
12011200D. 25 M08 THRU Add to list
