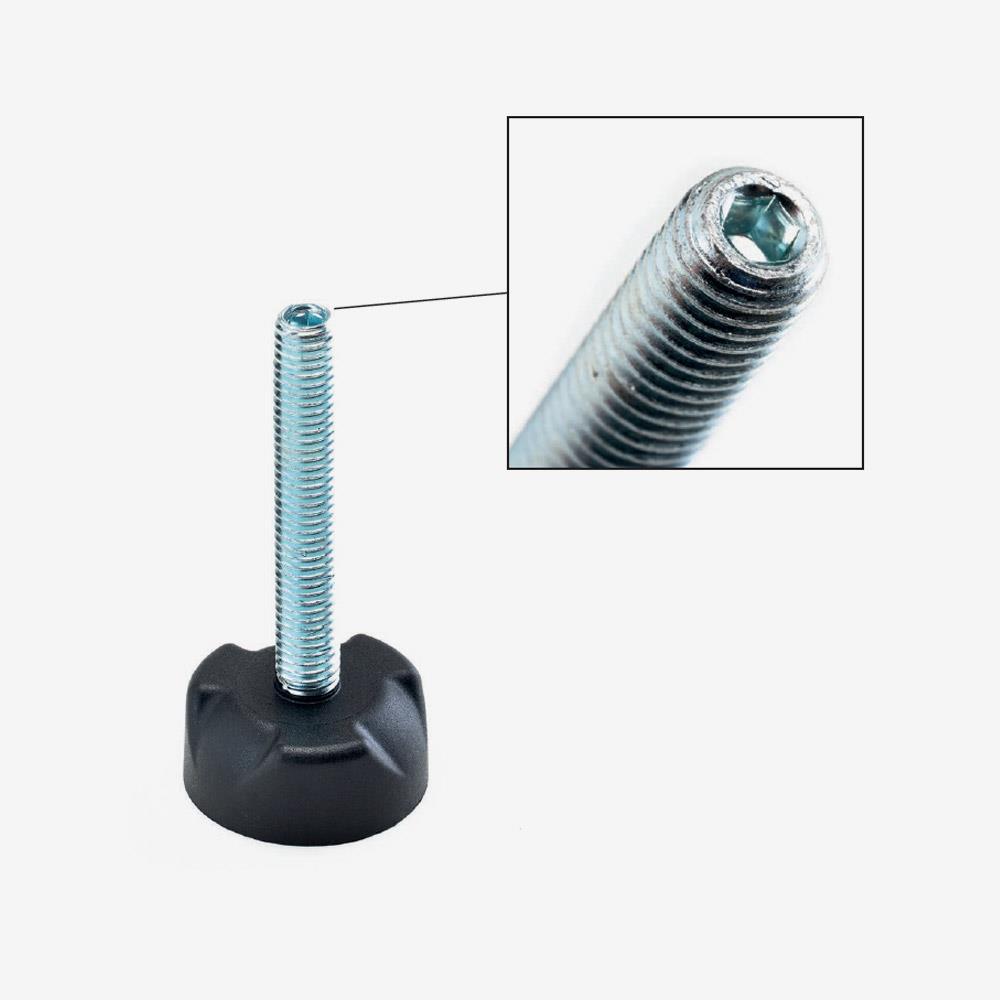

Fixed leveling foot with socket hex

Details


APPLICATION
The FIXED LEVELING FOOT WITH SOCKET HEX allows adjustment from above using the recessed Allen key at the end of the threaded pin.
It has excellent mechanical strength and aesthetic impact.

  • MATERIAL
    Technopolymer (PA) reinforced with glass fibres, solvent, oil and grease resistant.
  • COLOUR
    Standard black satin finish.
    On demand and for quantities customizations with: colours, company logo, etc.
  • THREADED STEMS WITH ARTICULATION
    Zinc plated steel stud.
  • SLIDE-PROOF RUBBER
    Thermoplastic rubber hardness 80 shore A.
    When placing your order please select the code with rubber - or - without slideproof rubber.
Data sheet
Request 2D and 3D drawings



Back

Variants available

Below the list of variants available for the product Fixed leveling foot with socket hex.
Add a variant to your personal list to request a personalized quote.

CodeTypeQuantity
40740280D.30 M8x50 + rubber Add to list
40740300D.40 M8x50 + rubber Add to list
40740350D.40 M10x90 + rubber Add to list
40740500D.50 M10x90 + rubber Add to list
40760280D.30 M8x50 Add to list
40760300D.40 M8x50 Add to list
40760350D.40 M10x90 Add to list
40760500D.50 M10x90 Add to list
